KeyMod and M-LOK look similar at a glance, but their mounting hardware works very differently. Mixing parts—or using the wrong screws, nuts, or technique—leads to stripped heads, damaged slots, and accessories that won’t stay put. Getting the fasteners right is about identifying the interface correctly and applying controlled torque with proper engagement.
This guide breaks down how to tell KeyMod from M-LOK, what hardware each system uses, and how to install it without stripping screws or damaging your rail.
Identify the Interface First
Before touching hardware, confirm which system you’re working with.
-
KeyMod: Keyhole-shaped slots with a large circular opening and a narrow channel
-
M-LOK: Straight, rectangular slots with beveled edges
Never assume compatibility—KeyMod and M-LOK hardware are not interchangeable.
How Each System Locks In
KeyMod: Recoil Lugs + Chamfered Screws
KeyMod uses angled interfaces. The screw heads and accessory lugs pull into chamfered surfaces inside the slot.
-
Requires forward seating into the slot before tightening
-
Uses flat-head (countersunk) screws matched to the chamfer
-
Relies on correct positioning to resist recoil
If the accessory isn’t seated forward before tightening, it can slip and loosen.

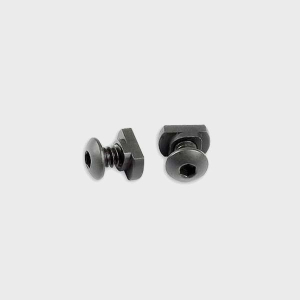

M-LOK: T-Nuts That Rotate to Clamp
M-LOK uses rectangular T-nuts that rotate 90° to lock behind the slot.
-
Uses flat or socket-head screws with rotating T-nuts
-
Nuts must “time” correctly (rotate fully and seat flat)
-
Clamps from the back side of the slot for a secure hold
Improper nut timing is the most common cause of loose M-LOK accessories.
Choosing the Right Hardware
Correct hardware prevents both stripping and poor retention.
-
Use manufacturer-supplied screws whenever possible
-
Match screw head type to the system (countersunk vs socket)
-
Ensure screw length fits your rail thickness
Too short won’t clamp. Too long can bottom out or damage internal surfaces.
Preventing Stripped Screws
Most stripped fasteners come from tool mismatch or poor technique—not bad parts.
Use the Correct Bit
-
Fully seat the driver into the screw head
-
Avoid worn or undersized bits
-
Apply straight, even pressure
Control Torque
-
Tighten gradually—not in one motion
-
Use a torque driver when possible (inch-pounds for small hardware)
-
Stop once resistance increases—don’t force it
Start Threads by Hand
-
Prevents cross-threading
-
Ensures proper alignment before tightening
System-Specific Installation Tips
KeyMod Best Practices
-
Insert into the large opening, then slide forward into the narrow channel
-
Hold forward pressure while tightening
-
Confirm the accessory is fully seated before torqueing
M-LOK Best Practices
-
Watch the T-nut rotate—ensure it turns fully and lies flat
-
Do a light tighten, then back off slightly to confirm proper timing
-
Re-tighten to final torque once aligned
If the nut doesn’t rotate correctly, stop and reset—forcing it will strip threads or damage the slot.
Common Mistakes to Avoid
-
Mixing KeyMod and M-LOK hardware
-
Using incorrect screw lengths
-
Over-tightening to compensate for poor fit
-
Ignoring nut alignment or timing
-
Using low-quality or worn tools
Most failures come from rushing installation rather than hardware defects.
Did You Know?
Many stripped screws happen because the driver bit isn’t fully seated—proper engagement matters more than applied force.
Conclusion
KeyMod and M-LOK both offer secure mounting when installed correctly, but each system requires its own hardware and technique. Identifying the interface, matching the correct fasteners, and applying controlled torque prevents stripped screws and loose accessories. For precision-fit rail components and mounting solutions designed for reliable installation, explore handguards and rail accessories built for consistent performance.
FAQs
Can KeyMod and M-LOK hardware be used interchangeably?
No. Each system uses completely different mounting methods and hardware.
What causes M-LOK nuts to spin instead of lock?
Improper timing or incorrect screw length prevents the nut from seating correctly.
Why do KeyMod accessories loosen over time?
They may not have been seated forward in the slot before tightening.
How tight should these fasteners be?
Tight enough to secure the accessory without stripping—use a torque driver when possible.
Is thread locker necessary?
It helps maintain hold under vibration but should be used in small amounts with proper torque.
